BlackBond E1
BlackBond E1
SIZE
9" (L) x 7.3” (W) x 1.50” (H)
E1 Link Encryptor
Advanced Wide Area Network Encryption
- Secure E1 Voice Circuits -
- Secure E1 Data Networks -
- Secure E1 Video Codecs -
- Protocol Transparent -
Overview
Secure Sensitive Voice, Video and Data Communications
Voice Encryption
The Engage BlackBond E1 has proven itself for over a decade as an ultra secure encryptor of E1 circuits. Sophisticated organizations that transmit mission critical sensitive information over leased or dial-up E1 lines utilize the BlackBond E1 to keep their communications private. Voice Encryption is the primary application for E1 Encryption.
The alignment of the E1 frames to AES blocks makes the BlackBond a very robust error tolerant encryptor of sensitive E1 Voice, Data and Video.
Additionally for Point to Point E1 links the BlackBond E1 adds a physical layer of E1 encryption security to data networks.
The Engage BlackBond E1 is a Commercial Off the Shelf E1 Link Encryptor that utilizes the Advanced Encryption Standard to Secure Sensitive Information Transmitted Over Point to Point or Dial-up E1 Communication Links for:
- Health Care Industries
- Financial Institutions
- Multi-Site Commercial Enterprises
- Homeland Security
- Public Safety Networks
- National, State and Local Governments
- Department of Defense
Proven Interoperability
The BlackBond's E1 interface has over a decade of proven interoperability with the full range of E1 communication equipment including:
- WAN Bridges and Routers
- PBX Trunks
- Video Codecs
- Voice and Data Multiplexers
- Cellular Base Stations
Encryption Method
Key Management
Automated key management configurations ensure timely key transitions and eliminate the operational and maintenance costs of managing an encrypted network with manual key distribution.
Applications
Encrypt Sensitive E1 Communication Links
Encryption Method
The Advanced Encryption Standard (AES) is utilized by the BlackBond to protect electronic data. The AES algorithm is a symmetric block cipher that encrypts and decrypts information. AES is a FIPS approved symmetric encryption algorithm that may be used by U.S. Government organizations (and others) to protect sensitive information.
Key Management
Automated key management configurations ensure timely key transitions and eliminate the operational and maintenance costs of managing an encrypted network with manual key distribution.
Management An IP Ethernet interface, with SNMP, enables ease of management, configuration, and upgradeability.
BlackBond Optional Features
E1 Protection Switch OPTION -TPS
The E1 Protection Switch provides an automatic backup for E1 circuits with a second E1. The switch over criteria is configured.
E1 Link Protector OPTION -LPT
The E1 Link Protector provides an automatic backup for E1 circuits with E1 Over IP connecting via Wireless Ethernet, Gigabit Ethernet, IP Satellite Services, and xDSL.
Specifications
Encryption Algorithm
- AES 256-bit
- Fully Automatic key management with configured interval
E1/Fractional E1 Specifications
- 1 RED and 1 BLACK E1
- Integrated CSU Connects to Telco E1 or with a crossover cable to DS1
- Framing - CRC4
- Coding - HDB3 or AMI
- Supports DS0 assignments from 1 to 32
- Not Contiguous Configuration x-y,z
Supported LAN Network Interface
- Two 10/100BaseT Full/Half Ethernet
- Auto negotiation or Configured Speed and Duplex
LAN Network Protocols Supported
- IP, TCP, UDP, ICMP
- Telnet TFTP Online Upgrade Capable (FLASH ROMs)
- BlackBond is fully operational during upgrade
Dimensions
- 9" (L) x 7.3” (W) x 1.50” (H)
- Optional Medeco Case
Regulatory
- CE
- Safety -IEC60950
- EMC - CFR 47 Part 15 Sub Part B:2002, EN55022: 1994 + A1 & A2, EN55024, ICES-003 1997, CISPR 22 Level A
- Telecom TBR12, TBR13
Management
- Telnet support with Edit and Paste Template Files
- Console Port for Out of Band Management
- SNMP support (MIB I, MIB II) with configured traps
- Remote configuration, monitoring, & reset
- Telco
Power
- 12-30 VDC, 1.0A.
- Optional -48V 0.25 Amp
Environmental
- 0° to 132° F (-10° to 50°C ) operating temperature
- Up to 90% operating humidity (non-condensing)
- Optional Extended Temperature Range available
Diagnostics
- Local Loop, Remote Loop
Ordering Information
Chassis Slot Card: BlackBond E1
Rack Mount & Power Supply Options:
Part No.
Description
BlackBond E1 Standalone
007-2048-02
BlackBond E1, AES (256 bit key) E1 Link Encryptor. E1 Base Model with 1 RED and 1 BLACK E1 Port

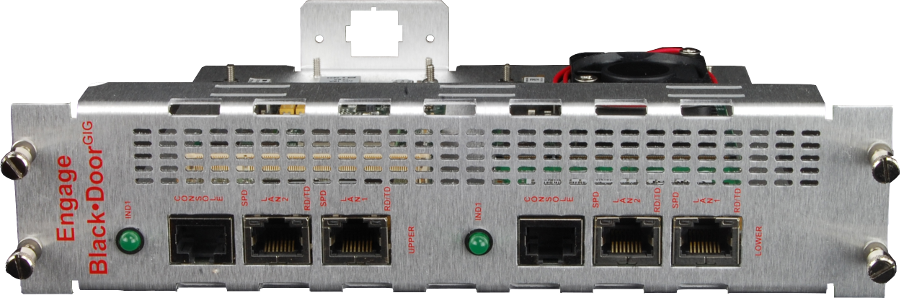

BlackBond E1 Slot Card
CH-007-2048-02
BlackBond E1, AES (256 bit key) E1 Link Encryptor. E1 Base Model with 1 RED and 1 BLACK E1 Port - Slot Card Version
Optional Features
Optional Features
TPS
BlackBond E1 Switch Protection, The E1 Switch Protection provides an automatic backup for E1 circuits with a second E1. The switch over criteria is configured.
ROHS
ROHS compliant materials and processes, Restriction of Hazardous Substances no Pb
LPT
BlackTube E1 Link Protector, The E1 Link Protector provides an automatic backup for E1 circuits with E1 Over IP connecting via Wireless Ethernet, Gigabit Ethernet, IP Satellite Services,and xDSL.
Power Supply Options
Power Supply Options
094-2418
90-220 VAC Universal International/Domestic Adapter
094-2418-R
DUAL REDUNDANT, 90-220 VAC Adapter
094-N48V
Internal Power Module, -48 VDC Screw Terminals
094-N48V-02
DUAL REDUNDANT, -48 VDC Screw Terminals
094-1500
WIREDC Option, +24 VDC Screw Terminals
094-WIREDC-R
DUAL REDUNDANT, +24VDC
Rack Mount Options
Rack Mount Option
095-1000
Rack Mount Kit - for single 7" products (Fits both 19" and 23" racks)
095-2000
2 unit 19" x 1RU Rack Mount Kit for 7" products
094-WIREDC-R
DUAL REDUNDANT, +24VDC
095-3000-RTANG
Right Angle Wall Mount Bracket Kit
